BMW 3 Series Sedan LCI G20 three-quarter rear view standing bird’s-eye view

THE NEW 3

THE NEW BMW 3 SERIES SEDAN:
ENGINES & TECHNICAL DATA

THE NEW 3THE NEW BMW 3 SERIES SEDAN:<br>ENGINES & TECHNICAL DATA

The key facts and figures for the new BMW 3 Series Sedan at a glance:


  • Engines, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration

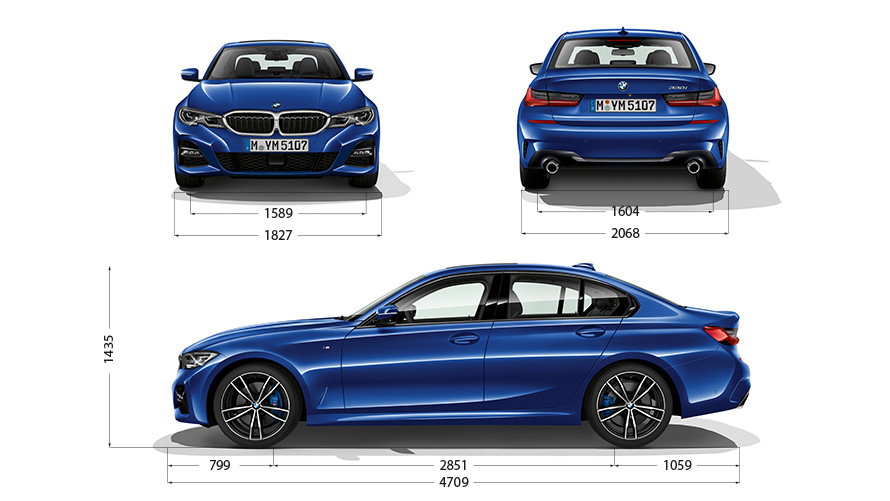

  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA OF THE NEW BMW 3 SERIES SEDAN.

Select model

Weight

Unladen weight EU in kg 1,575
Max. permissible weight in kg 2,055
Permitted load in kg 555
Permitted axle load front/rear in kg 965/1,170
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,300
Trailer load 12% (braked) in kg 1,300

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 115 (156)/4,500-6,500
Engine torque (Nm) at 1/min 250/1,300-4,300
Compression ratio : 1 11.0

Performance

Top speed in km/h 223
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 8.6

Fuel consumption

Combined in l/100 km 6.5
CO2 combined emissions in g/km 148
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Fuel consumption and CO2 emissions.

  • Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

    All technical data are indicative only and varies as per market and configuration. For more information, please check with your local dealer for all fuel consumption and CO2 emissions.
