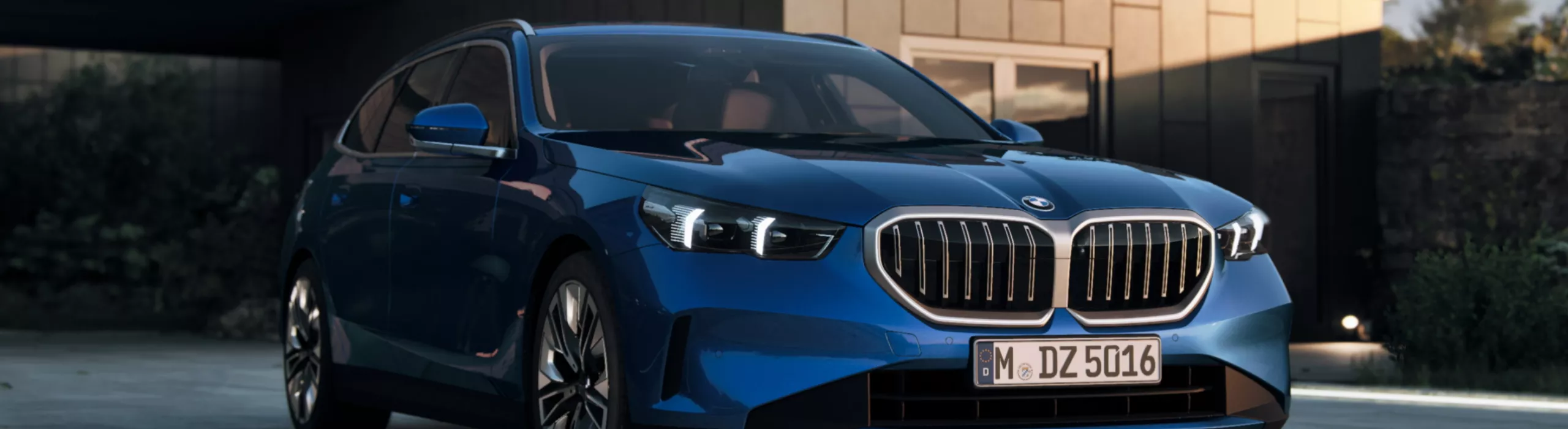

TECHNICAL DATA FOR THE BMW 5 SERIES TOURING.
|
|
|
|---|---|
|
Fuel type |
Electric |
|
Power in kW (hp) |
250 (340) |
|
Torque in Nm |
430 [8] |
|
Transmission |
1-speed, automatic |
|
Drivetrain |
R |
|
|
|
|---|---|
|
(Nominal) power/30-minutes-power in kW (hp) |
250 (340)/105 (143) |
|
(Nominal) torque in Nm |
400 |
|
|
|
|---|---|
|
Acceleration 0–100 km/h in s |
6.1 |
|
Top speed in km/h |
193 |
|
Electric top speed in km/h |
193 |
|
CO2 emissions, combined WLTP in g/km |
0 |
|---|---|
|
Energy consumption, combined WLTP in kWh/100 km |
19.4 |
|
Electric range, WLTP in km 2 |
526 - 603 |
|
Pass-by noise in dB(A) |
66 |
|
Battery capacity in kWh |
81.2 |
|---|---|
|
Added range after 10 minutes of high-power charging (HPC) in km |
149–189 |
|
Maximum charging power AC in kW |
11 |
|
Minimum charging time AC 0–100 % state of charge in h |
8:30 |
|
Maximum charging power DC in kW |
205 |
|
Minimum charging time DC 10–80 % state of charge in h |
0:30 |
|
|
|
|---|---|
|
5,060 mm
|
|
|
1,900 mm
|
|
|
1,515 mm
|
|
|
Length in mm |
5,060 |
|
Width in mm |
1,900 |
|
Height in mm |
1,515 |
|
Wheelbase in mm |
2,995 |
|
Vehicle curb weight in kg 4 |
2,255 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg 5 |
1,500/80 |
|
Luggage capacity in l |
570–1,700 |
|
Fuel type |
Petrol – 48 Volt Mild-Hybrid |
|---|---|
|
Power in kW (hp) |
153 (208) 7 |
|
Torque in Nm |
330 7 |
|
Transmission |
8-speed, automatic |
|
Drivetrain |
Rear-wheel drive |
|
Cylinders |
4 |
|---|---|
|
Displacement in cm³ |
1,998 |
|
Nominal power in kW (hp)/1/min |
140 (190) / 4,400 - 6,500 |
|
Nominal torque in Nm/1/min |
310 / 1,500 - 4,000 |
|
|
|
|---|---|
|
(Nominal) power/30-minutes-power in kW (hp) |
13 (18)/10 (–) |
|
(Nominal) torque in Nm |
200 |
|
|
|
|---|---|
|
Acceleration 0–100 km/h in s |
7.8 |
|
Top speed in km/h |
222 |
|
Fuel consumption, combined WLTP in l/100 km |
6.7–6.1 |
|---|---|
|
CO2 emissions, combined WLTP in g/km |
153–137 |
|
Pass-by noise in dB(A) |
67 |
|
Stationary noise level in dB(A) / 1/min |
73/3,750 |
|
Battery capacity in kWh |
0.9 |
|---|
|
|
|
|---|---|
|
5,060 / 1,900 / 1,515 mm
|
|
|
1,900 mm
|
|
|
1,515 mm
|
|
|
Length in mm |
5,060 / 1,900 / 1,515 |
|
Width in mm |
1,900 |
|
Height in mm |
1,515 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,156 |
|
Wheelbase in mm |
2,995 |
|
Vehicle curb weight in kg 4 |
1,850 |
|
Permissible gross weight in kg |
2,435 |
|
Payload in kg |
660 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg 5 |
2,000 / 100 |
|
Luggage capacity in l |
570–1,700 |
|
Tank capacity in l |
60 |
Consumption and CO2 emissions.
BMW 520i Touring: Fuel consumption, combined WLTP in l/100 km: 6.7–6.1; CO2 emissions combined WLTP in g/km: 153–137
All technical data are indicative only and varies as per market and configuration. For more information, please check with your local dealer for all fuel consumption and CO2 emissions.
