BMW M3 CS G80 side view driving on race track

THE M3

BMW M

THE NEW BMW 3 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA.

THE M3THE NEW BMW 3 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA.

The new BMW 3 Series Sedan M Automobiles – engines, facts and dimensions.

BMW 3 SERIES SEDAN M AUTOMOBILES: TECHNICAL DATA.

Select model

Total Powertrain (1)

Powertrain type Petrol
Power in kW (hp) 405 (551)
Torque in Nm 650
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine (1)

Cylinders 6
Displacement in cm³ 2993
Nominal power in kW (hp)/1/min 405 (551)/6250
Nominal torque in Nm/1/min 650/2750-5950

Electric motor

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 3.4
Maximum speed in km/h 302

Fuel economy/CO2 emissions (1)(2)

Fuel consumption, combined WLTP in l/100 km 10.4-10.1
CO2 emissions, combined WLTP in g/km 234-229

High-voltage/48 volt battery, charging (3)

Battery capacity in kWh -

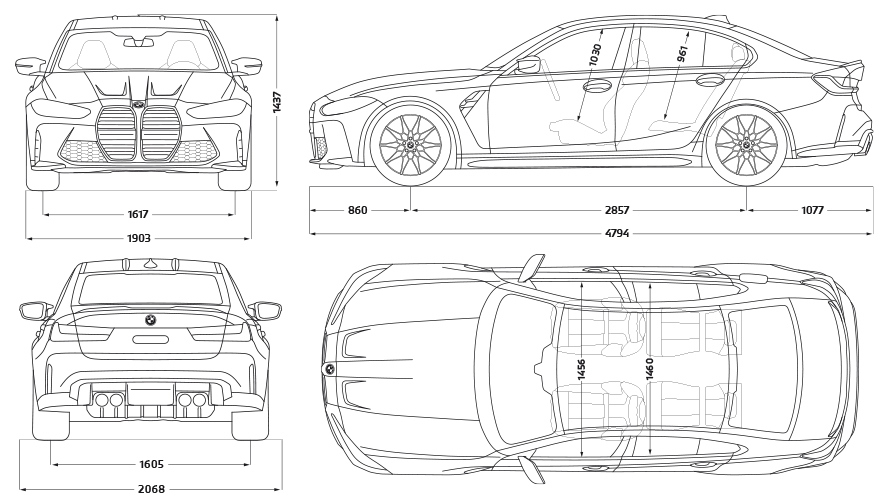

Dimensions/weights

Length/width/height in mm 4795/1918/1444
Wheelbase in mm 2857
Curb weight in kg (4) 1840
Luggage capacity in l 480
Fuel capacity in l 59
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg -

Total Powertrain (1)

Powertrain type Petrol
Power in kW (hp) 375 (510)
Torque in Nm 650
Transmission 8-speed, automatic
Drivetrain Rear-wheel drive

TwinPower Turbo internal combustion engine (1)

Cylinders 6
Displacement in cm³ 2993
Nominal power in kW (hp)/1/min 375 (510)/6250
Nominal torque in Nm/1/min 650/2750-5500

Electric motor

(Nominal) power/30 minutes power in kW (hp) -
(Nominal) torque in Nm -

Performance

Acceleration 0–100 km/h in s 3.9
Maximum speed in km/h 250

Fuel economy/CO2 emissions (1)(2)

Fuel consumption, combined WLTP in l/100 km 9.8
CO2 emissions, combined WLTP in g/km 224-223

High-voltage/48 volt battery, charging (3)

Battery capacity in kWh -

Dimensions/weights

Length/width/height in mm 4794/1903/1433
Wheelbase in mm 2857
Curb weight in kg (4) 1805
Luggage capacity in l 480
Fuel capacity in l 59
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg -

Total Powertrain (1)

Powertrain type Petrol - mild hybrid
Power in kW (hp) 275 (374)
Torque in Nm 500
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine (1)

Cylinders 6
Displacement in cm³ 2998
Nominal power in kW (hp)/1/min 275 (374)/5500-6500
Nominal torque in Nm/1/min 500/1900-5000

Electric motor

(Nominal) power/30 minutes power in kW (hp) 8(11)/-(5)
(Nominal) torque in Nm -(5)

Performance

Acceleration 0–100 km/h in s 4.4
Maximum speed in km/h 250

Fuel economy/CO2 emissions (1)(2)

Fuel consumption, combined WLTP in l/100 km 8.5-7.8
CO2 emissions, combined WLTP in g/km 192-177

High-voltage/48 volt battery, charging (3)

Battery capacity in kWh 0.5

Dimensions/weights

Length/width/height in mm 4714/1827/1440
Wheelbase in mm 2851
Curb weight in kg (4) 1800
Luggage capacity in l 480
Fuel capacity in l 59
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 1800/75
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions.

BMW M3 CS:
Fuel consumption, combined WLTP in l/100 km: x.x–x.x
CO2 emissions, combined WLTP in g/km: xxx–xxx

BMW M3 Competition Sedan with M xDrive:
Fuel consumption, combined WLTP in l/100 km: 10.1–10.0
CO2 emissions, combined WLTP in g/km: 230–228

BMW M3 Competition Sedan:
Fuel consumption, combined WLTP in l/100 km: 9.8
CO2 emissions, combined WLTP in g/km: 224–223

BMW M3 Sedan:
Fuel consumption, combined WLTP in l/100 km: 10.2–10.0
CO2 emissions, combined WLTP in g/km: 231–227

BMW M340i xDrive Sedan:
Fuel consumption, combined WLTP in l/100 km: 8.5–7.8
CO2 emissions, combined WLTP in g/km: 192–177

BMW M340i Sedan:
Fuel consumption, combined WLTP in l/100 km: 8.5–7.8(1)
CO2 emissions, combined WLTP in g/km: 192–177(1)

BMW M340d xDrive Sedan:
Fuel consumption, combined WLTP in l/100 km: 6.4–5.9
CO2 emissions, combined WLTP in g/km: 169–154


(1) Provisional figures

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more

Fuel consumption and CO2 emissions.


  • BMW M3 CS:
    Fuel consumption, combined WLTP in l/100 km: 10.4–10.1
    CO2 emissions, combined WLTP in g/km: 234-229

    BMW M3 Competition Sedan:
    Fuel consumption, combined WLTP in l/100 km: 9.8
    CO2 emissions, combined WLTP in g/km: 224–223

    BMW M340i xDrive Sedan:
    Fuel consumption, combined WLTP in l/100 km: 8.5–7.8
    CO2 emissions, combined WLTP in g/km: 192–177


    [1] Provisional figures

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Fuel consumption and CO2 emissions.

BMW M3 CS:
Fuel consumption, combined WLTP in l/100 km: 10.4–10.1
CO2 emissions, combined WLTP in g/km: 234-229


BMW M3 Competition Sedan:
Fuel consumption, combined WLTP in l/100 km: 9.8
CO2 emissions, combined WLTP in g/km: 224–223


BMW M340i xDrive Sedan:
Fuel consumption, combined WLTP in l/100 km: 8.5–7.8
CO2 emissions, combined WLTP in g/km: 192–17


[1]Provisional figures


Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more
  • The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.


    [1] Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.


    [2] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

    Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the ""Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars"", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.


    [3] The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.


    [4] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.


    [5] Provisional figures; any missing figures were unavailable at the time of publication.
